Recharge your EV from your home or on the go

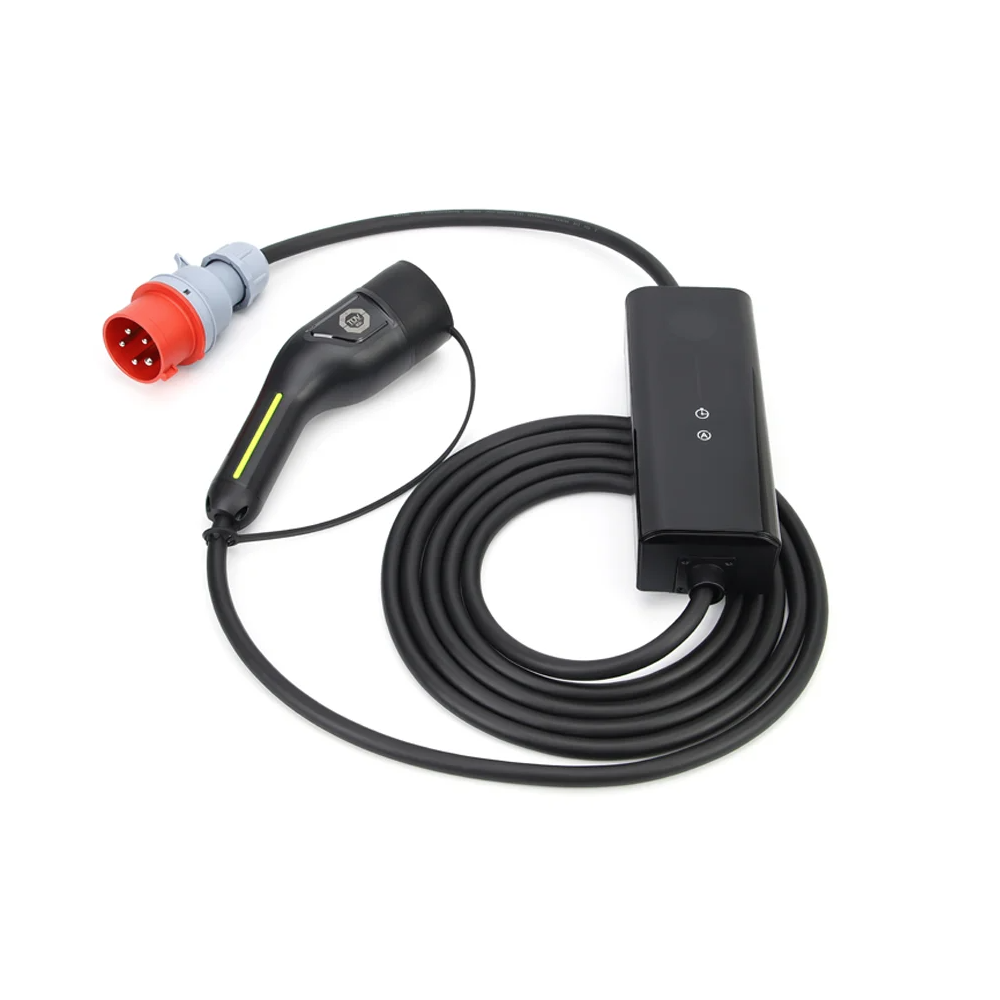

11KW 16A 3 Phase Portable EV Charger for Electric Vehicle 5 Meters/10 Meters

*please make sure first your red plug and fuse is 16amp 11kW (and not 32A – 22kW)

• 6A/8A/10A/13A/16A current adjustable

• Available option with two adaptors: schuko and female red plug 16A (11kW)

• 5 Meters or 10 Meters cord reaches and packs away easily (10 meters is heavy!)

• Long-lasting thermal-conductive coating and copper wire

• Conveniently lock in your car's charging current

• Monitor vital information on the easy-to-read screen

Durable materials

The cable's thermal-conductive cover and copper wire are tough for everyday wear and tear from garages and trunks. The charger can survive falls from heights of 1m/3.3ft and 2t/1814.4kg of pressure.

Smart control remembers your preferred settings

Once you select your car's recommended current from 8A, 10A, 13A or 16A, the unit will automatically set the same level for your next charge.

Detailed LED display provides at-a-glance information

Easily read the charging temperature, current, time and power status in kWh on the convenient screen.

5 safety features protect your vehicle

The surge box safeguards against leaks, high or low voltage, overloading, lightning and overheating.

When internal temperature of control box exceeds 85 °C, enter over-temperature protection, stop charging.

After temperature drops to 70 °C will recover charging.

Over temperature protection, making charging safe and secure!

Usage and Care

Adjust the current setting by pushing the blue button. While you adjust the current, the power plug should be connected. The type 1 or type 2 plug should be disconnected. After selecting the proper current, plug the charger in your car’s port and start charging.

Reserve the charging time by press the green button, max reserving time is 10 hours later.

Specifications

Length: 5 Meters or 10 Meters
Interchange part number: type 2
Material: thermoplastic and copper
Weight: 4.5kg/6kg

Wire Gauge: 5G2.5mm² + 2×0.5mm²
Current: 6/8/10/13/16A
Name: Mode 2 EV charger 16A
Input power: 110–250V /380-450V AC
Output power: Max 11kW
Insulation resistance: > 1000MD (DC500V)
Terminal temperature rise:< 50K
Housing Fire Rating：UL94V-0

Origin: Mainland China
Brand Name: ANDAIIC

Name: 11kw 3 phase EV charger

1 year warranty
